Is there a more iconic duo than Peanut Butter and Jelly? PB+J is hard to beat but BoxLang + WebSockets might just give the classic sandwich a run for its money. With the recent WebSocket additions to CommandBox and the new SocketBox library from Ortus there has never been a better time to incorporate WebSockets into your app.
What Are WebSockets?
WebSockets are a way for your web application to provide real-time information from the server to the client. They are fast, have low overhead, and well-supported in modern browsers.
A WebSocket connection starts its life as a normal HTTP request but with an Upgrade: websocket header. The server recognizes this header and if supported attempts to change the underlying protocol using a 101 Switching Protocols response. Once both the browser and the web server have completed the upgrade process your application will have a fully duplexed bi-directional communication channel, Snazzy!
In the past all communication from the client was done through HTTP requests. The only way to allow a server to imitate communication would be to poll from the client. You could do this through either polling on a consistent interval (say, every 30 seconds) or by implementing long polling - a process where you send an HTTP Request with a long timeout, the server then receives the request and starts a loop to block the thread from returning. When the server has data to send to the client it simply interrupts the loop and responds to the HTTP request.Once the client processes the request, they will typically start another long-lived HTTP request to give the server another opportunity to send data the next time it is available.
WebSockets are not always better than HTTP, it is important to use the right tool for the job, but they have many advantages and are now supported by your favorite tools!
If you are interested in learning more about the underlying mechanics take a look at this excellent WebSocket article from Geeks For Geeks.
SocketBox Makes it Easy
So if WebSockets are so great, why do we need SocketBox? SocketBox does several things for us. Within CommandBox the WebSocket connections are actually handled by the web server and then delegated to the BoxLang runtime. The SocketBox library is the connector between your application and the WebSocket connection. SocketBox provides all the utilities you need to configure the communication with your client. Tools like
WebSocketCoreclass for basic usageWebSocketSTOMPclass for using the STOMP WebSocket protocol- Clustering and working behind load balancers
- Tools for inter-server communication for messaging
The functionality that SocketBox provides really is exciting. For the sake of brevity, we will only cover the basics for now. This article is only the beginning of a series that will eventually cover more of SocketBox's features like clustering, messaging, STOMP and so on. If you are too eager to wait for the upcoming articles (I don't blame you!) feel free to check out the socketbox module on forgebox for more information.
Let's Get Connected!
What better way to get started than to jump right in? The following example is hosted in full at github.com/jbeers/socketbox-intro. Clone it and try it out!
To install the SocketBox module simply run
box install socketbox
Once installed we can get to work. You will need to write a server.json file that tells CommandBox you want to enable WebSockets.
{
"name":"socketbox-intro",
"app":{
"cfengine":"boxlang@be"
},
"jvm":{
"javaVersion":"openjdk21"
},
"rewrites":{
"enable":true
},
"web":{
"websocket":{
"enable":true,
"listener":"WebSocket.bx"
}
}
}
Now, let's create the WebSocket.bx listener.
class extends="modules.socketbox.models.WebSocketCore" {
public function onConnect( required channel ){
// tell everyone when a new channel connects
broadcastMessage( "A new channel connected" )
}
public function onClose( required channel ){
// tell everyone when a channel disconnects
broadcastMessage( "A channel dropped" )
}
public function onMessage( required message, required channel ){
// respond to a specific channel when it says it is ready
if( message == "ready" ){
sendMessage( "Hello, WebSocket!", channel )
}
}
}
And finally, we need to create our webpage that will create the WebSocket connection. It can be as simple as:
<script language="javascript">
// Use wss:// for HTTPS
const socket = new WebSocket('/ws');
socket.onopen = function() {
console.log('Connected to WebSocket server');
socket.send("ready");
};
socket.onmessage = function(event) {
console.log('Message from server:', event.data);
const outputDiv = document.getElementById('output');
const messageElement = document.createElement('div');
messageElement.textContent = event.data;
outputDiv.appendChild(messageElement);
};
socket.onclose = function(e) {
console.log('Socket is closed.');
};
socket.onerror = function(err) {
console.error('Socket encountered error: ', err.message );
};
</script>
<div id="output"></div>
Now that everything is in place we need to initialize and start the server. In your terminal run
# start commandbox
box
# once in the commandbox shell
install
server start
# open your app in the web browser
server open

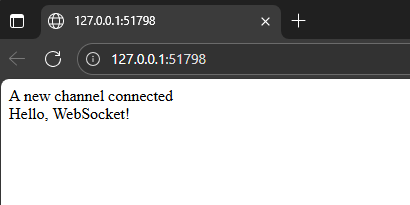

Your browser should now be open, and you should be greeted with something that looks like:

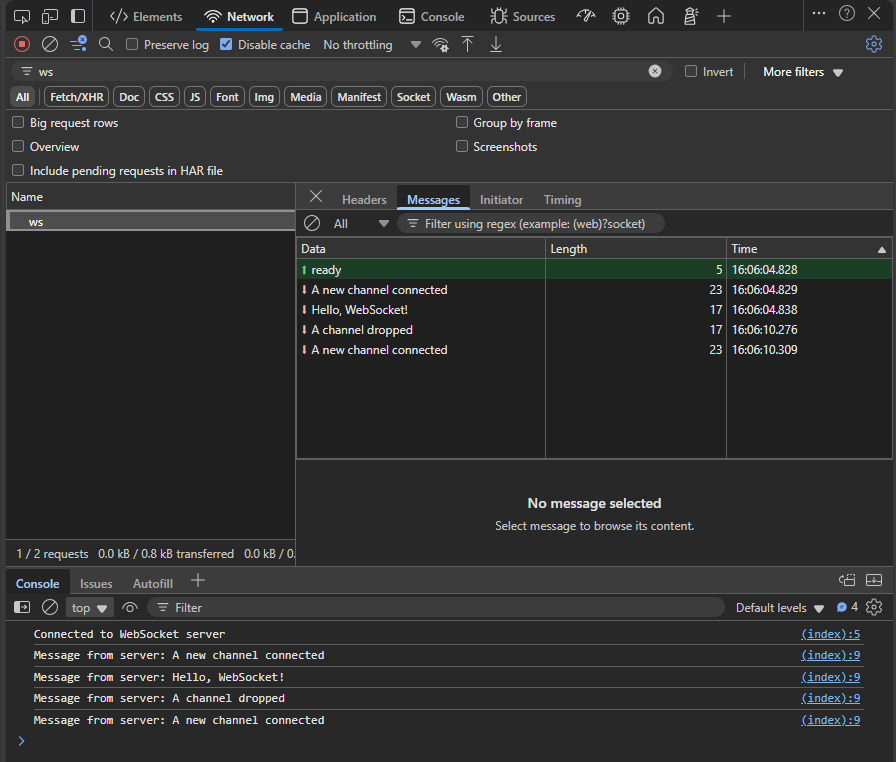

If you open up your network tab you can find the WebSocket connection and see the messages that are being sent back and forth.
.png)
The Conclusion
As exciting as BoxLang + WebSockets is PB&J’s legacy is likely safe. That being said, I think that you will agree with me when I say that the future of real time communication using SocketBox is quite promising.
There are many more topics I look forward to covering in the near future. Please stay tuned future articles in this series where we will cover
- Enabling cluster mode and deploying behind a load balancer (It is waaaay easier than you might think!)
- Security, authentication, and authorization using the Stomp protocol
- Ideas and examples of functionality you could add to your application using WebSockets
